Choosing a criterion

Every Mergen design is the answer to an optimisation problem, and the criterion is the question. Seven criteria are available, and they do not agree on what a good design is. This page explains what each one optimises, gives its mathematical definition, and ends with practical guidance. Throughout, the design is \(D = \{x_1, \dots, x_n\} \subset [0,1]^d\) in normalised coordinates, and every criterion is minimised.

Three families

Space-filling criteria fall into three families, each protecting against a different failure mode.

Distance-based criteria look at how close design points get to each other. They protect against clustered runs that duplicate information.

Uniformity (discrepancy) criteria compare the empirical distribution of the points with the uniform distribution. They protect against systematic density imbalance: regions that are over- or under-represented even when no two points are close.

Projection-based criteria demand that the design remain space-filling not only in the full \(d\)-dimensional space but in every lower-dimensional projection. They protect against the common situation where only a subset of the inputs turns out to matter: a design that is excellent in \(d\) dimensions can collapse onto few distinct values when projected onto the two inputs that drive the response.

Criterion	criteria=	Family	Qualitative factors	Reference
\(\phi_p\)	'phi_p'	distance	no	Morris & Mitchell (1995)
\(\mathrm{CD}_2\)	'cd2'	uniformity	no	Hickernell (1998)
MaxPro	'maxpro'	projection	no	Joseph, Gul & Ba (2015)
uMaxPro	'umaxpro'	projection	no	Vorechovsky & Masek (2026)
\(\mathrm{SL}_2\)	'stratified'	uniformity	no	Tian & Xu (2026)
\(\mathrm{MaxPro_{QQ}}\)	'maxproqq'	projection	yes	Joseph, Gul & Ba (2020)
QQD	'qqd'	uniformity	yes	Zhang, Yang & Zhou (2021)

\(\phi_p\)

\[ \phi_p(D) = \Big( \sum_{i<j} d_{ij}^{-p} \Big)^{1/p}, \qquad d_{ij} = \lVert x_i - x_j \rVert_2, \]

with \(p = 15\) by default (selected with criteria='phi_p'). As \(p \to \infty\), minimising \(\phi_p\) becomes equivalent to maximising the minimum inter-point distance, the classical maximin objective; finite \(p\) keeps the objective smooth enough to optimise while concentrating almost all weight on the closest pair (Morris & Mitchell, 1995).

Use it when physical spacing is the requirement: hardware limits on how close two operating points may be, or a worst-case guarantee that no two runs are near-duplicates. Its known weakness is projections: a maximin-optimal design can still project poorly onto subsets of the inputs.

\(\mathrm{CD}_2\)

The centred \(L_2\)-discrepancy (Hickernell, 1998) measures the worst-case mismatch, in an \(L_2\) sense over all corner-anchored boxes, between the fraction of design points in a box and its volume. It has the closed form

\[ \mathrm{CD}^2(D) = \Big(\tfrac{13}{12}\Big)^{d} - \frac{2}{n}\sum_{i=1}^{n}\prod_{k=1}^{d} \Big(1 + \tfrac12 |x_{ik}-\tfrac12| - \tfrac12 |x_{ik}-\tfrac12|^2\Big) + \frac{1}{n^2}\sum_{i,j=1}^{n}\prod_{k=1}^{d} \Big(1 + \tfrac12 |x_{ik}-\tfrac12| + \tfrac12 |x_{jk}-\tfrac12| - \tfrac12 |x_{ik}-x_{jk}|\Big), \]

and Mergen reports \(\mathrm{CD} = \sqrt{\mathrm{CD}^2}\) (selected with criteria='cd2').

Use it when overall uniformity is the goal, when results must be comparable with the uniform-design literature, or when integration-type quantities will be estimated from the runs. It is also the criterion whose implementation can be cross-checked against an independent one in SciPy, which Mergen’s validation suite does.

MaxPro

\[ \psi(D) = \sum_{i<j} \prod_{l=1}^{d} (x_{il} - x_{jl})^{-2}. \]

MaxPro (criteria='maxpro'): because the product runs over every coordinate, a single pair of points sharing a value in any one coordinate makes that pair’s term explode. The criterion therefore forces all \(n\) points to remain distinct in every one-dimensional projection and, as Joseph, Gul & Ba (2015) show, promotes space-filling in all \(\binom{d}{s}\) projections simultaneously. Mergen reports the raw pairwise sum, a strictly monotone transform of the published \(\big(\psi / \binom{n}{2} \big)^{1/d}\) form, so the optimum is identical.

Use it when a surrogate model will be fitted and you do not know in advance which inputs matter: projection quality is then the property that matters most. Its known artefact is a mild repulsion of points from the region near the boundary.

uMaxPro

uMaxPro (criteria='umaxpro'; Vorechovsky & Masek, 2026) keeps the MaxPro construction but replaces every squared coordinate difference by its periodic counterpart,

\[ \delta_{ijl} = \min\big(|x_{il} - x_{jl}|,\; 1 - |x_{il} - x_{jl}|\big), \qquad \psi_u(D) = \sum_{i<j} \prod_{l=1}^{d} \delta_{ijl}^{-2}, \]

which treats each axis as a circle. This removes the boundary repulsion of plain MaxPro and makes the criterion invariant under cyclic shifts of the design, a property Mergen’s validation suite checks explicitly. It is the default criterion in Sampler.run.

Use it in the same situations as MaxPro; prefer it when uniform treatment of the boundary matters, which is most of the time.

\(\mathrm{SL}_2\) (stratified)

The stratified \(L_2\)-discrepancy \(\mathrm{SL}_2\) (criteria='stratified'; Tian & Xu, 2026) evaluates uniformity across a nested hierarchy of grids: at depth \(i\) each axis is cut into \(s^i\) equal strata, and the criterion aggregates, over depths \(i = 0, \dots, p\) and all axes, how evenly the points occupy the strata:

\[ \mathrm{SD}^2(D) = -\Big(\sum_{i=0}^{p} w_i\, s^{-2i}\Big)^{d} + \frac{1}{n^2} \sum_{a,b=1}^{n} \prod_{j=1}^{d} \Big(\sum_{i=0}^{p} w_i\, s^{-i}\, \delta_i(x_{aj}, x_{bj})\Big), \]

where \(\delta_i(t, z) = \mathbf{1}\{\lfloor s^i t \rfloor = \lfloor s^i z \rfloor\}\) indicates shared stratum membership. Defaults: \(s = 2\), depth \(p = \lfloor \log_s n \rfloor\), and weights chosen automatically (constant for moderate \(d\), exponentially decaying for \(d \ge 8\)).

Use it when multi-resolution balance is the goal: designs that must look balanced both coarsely and finely, comparisons with stratified or orthogonal-array based constructions, or grid-refinement studies.

\(\mathrm{MaxPro_{QQ}}\)

\(\mathrm{MaxPro_{QQ}}\) (criteria='maxproqq'; Joseph, Gul & Ba, 2020) extends MaxPro to designs that mix continuous, discrete numeric, integer, ordinal, and nominal factors. Continuous coordinates contribute \((x_{il} - x_{jl})^2\) as before; a discrete numeric or ordinal factor with \(m_k\) levels contributes \((|u_{ik} - u_{jk}| + 1/m_k)^2\); a nominal factor with \(L_h\) levels contributes \((\mathbf{1}(v_{ih} \neq v_{jh}) + 1/L_h)^2\), so two runs sharing a nominal level are penalised but the term cannot vanish. When all factors are continuous, MaxProQQ reduces exactly to MaxPro, which Mergen’s test suite verifies.

Use it whenever the space contains nominal or ordinal parameters and projection quality is the priority. It is one of the two criteria that accept qualitative factors.

QQD

The qualitative-quantitative discrepancy QQD (criteria='qqd'; Zhang, Yang & Zhou, 2021) is the uniformity counterpart for mixed spaces: quantitative columns are scored with the wrap-around \(L_2\) kernel and nominal columns with a discrete kernel, calibrated so that neither factor type dominates. When no qualitative factors are present, QQD reduces to the wrap-around \(L_2\)-discrepancy of the quantitative sub-design, which the test suite also verifies. Mergen reports \(\mathrm{QQD}^2\), the quantity used throughout the original paper.

Use it for mixed spaces when the goal is uniformity rather than projections, for example when categorical treatment combinations must be represented evenly.

Two criteria, two signatures

The same space (two continuous parameters, 15 runs, identical seed) optimised under two different criteria makes the family differences concrete:

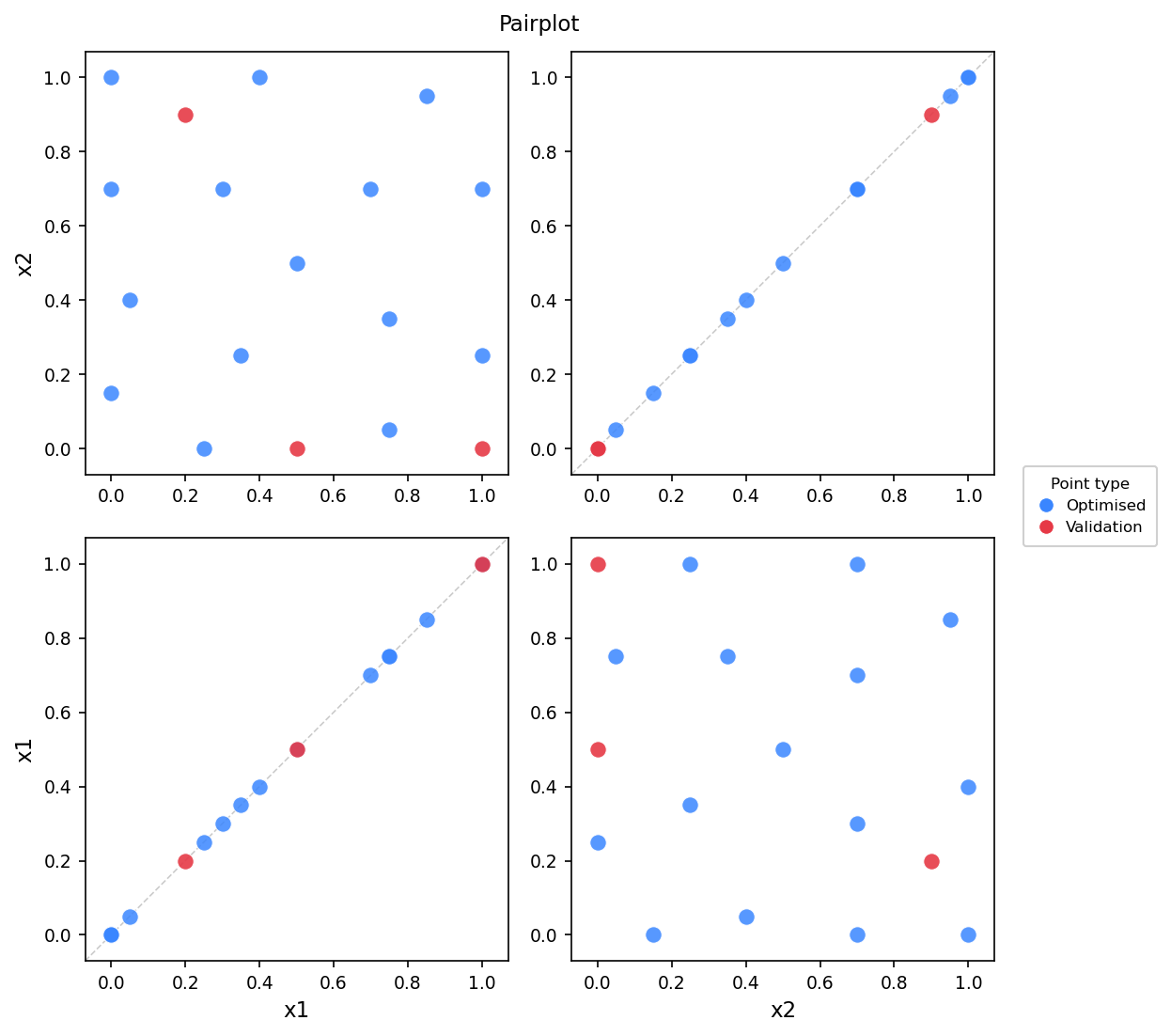

\(\phi_p\): points pushed apart, near-perfect spacing.

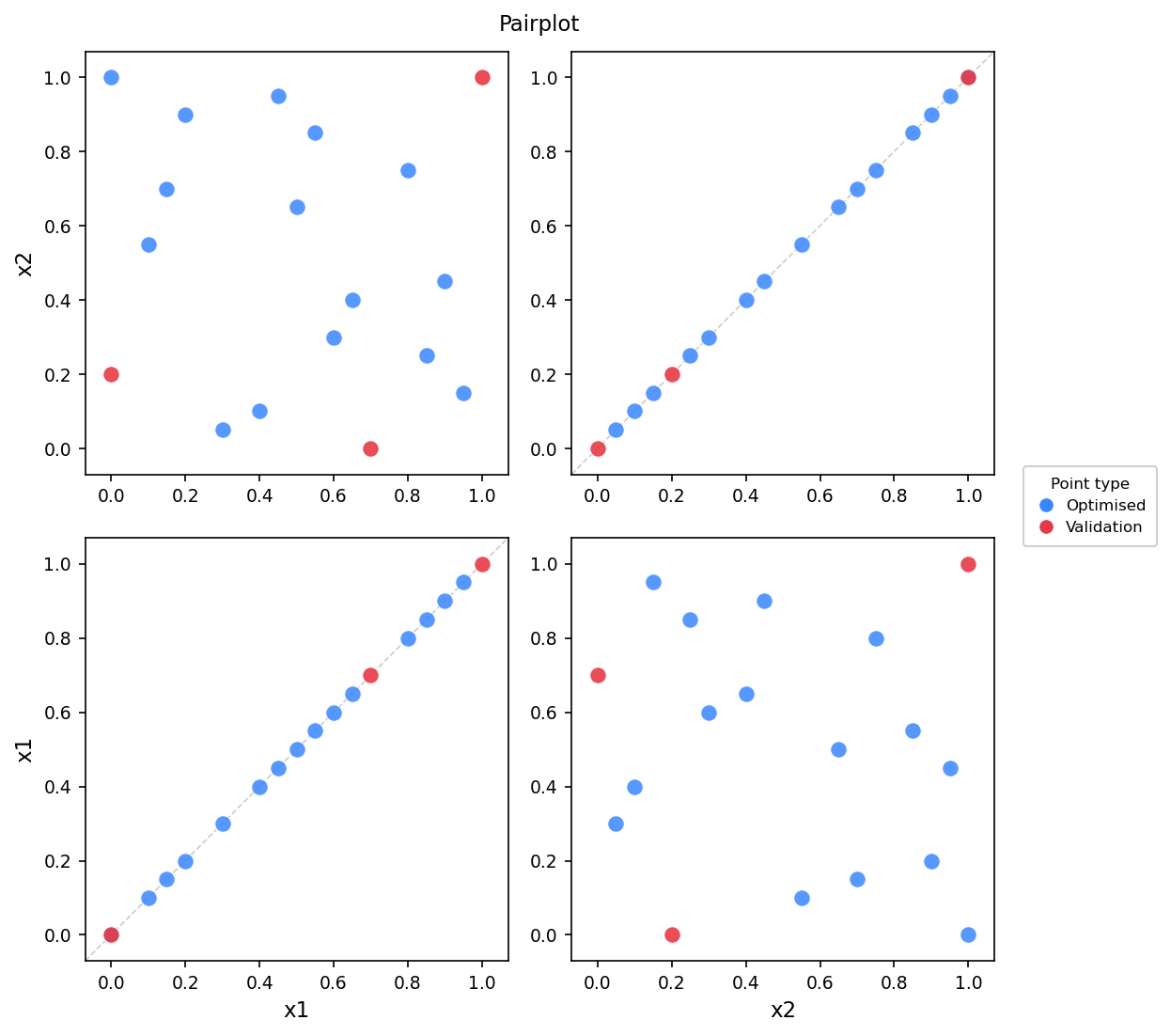

uMaxPro: spacing traded for projection structure.

The quality reports carry the same signatures: each design ranks high on the metrics its criterion serves and lower elsewhere.

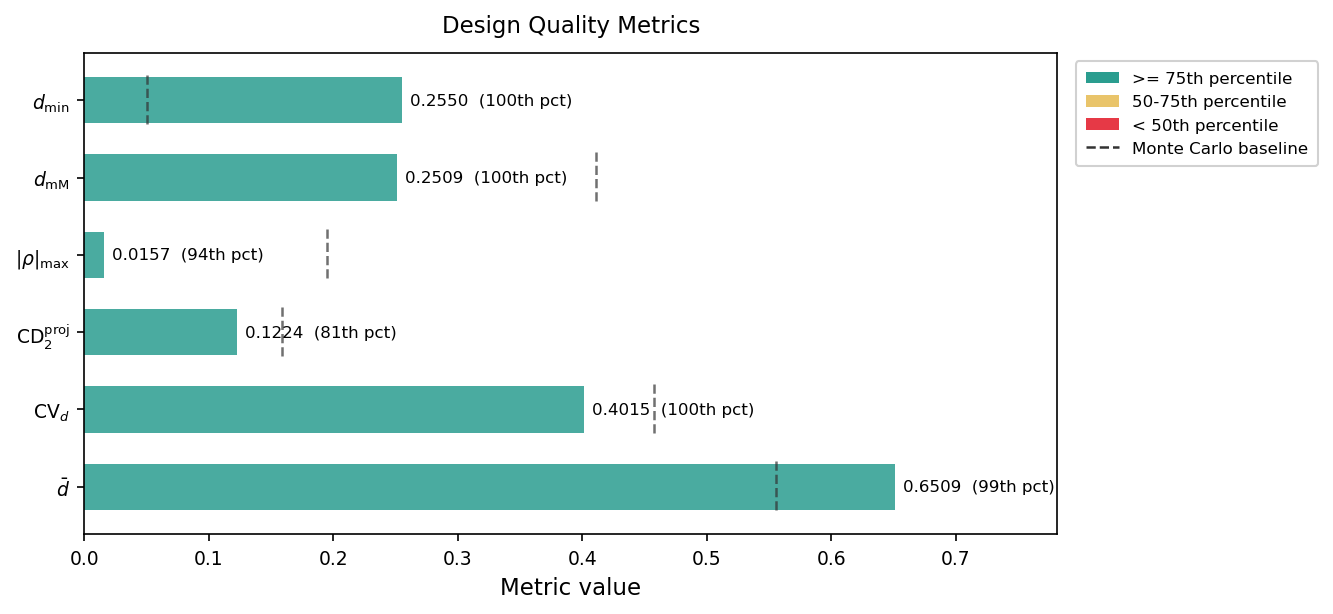

\(\phi_p\): distance metrics (\(d_{\min}\), \(\mathrm{CV}_d\), \(\bar d\)) dominate.

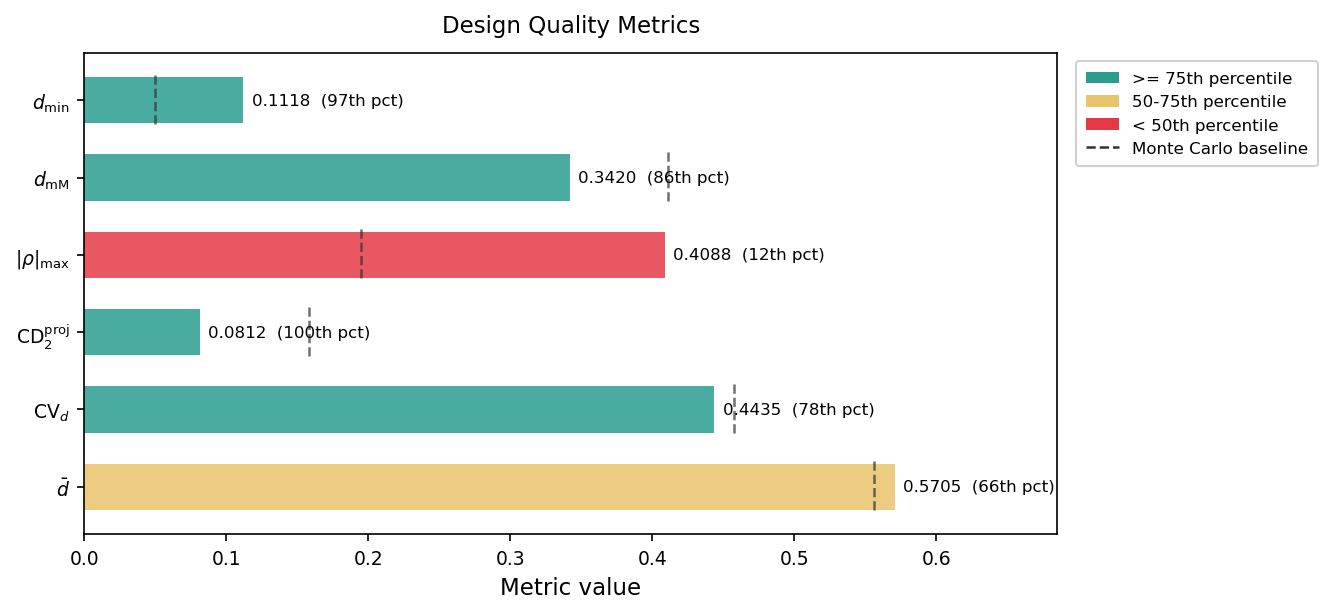

uMaxPro: a different profile from the same space and budget.

Neither picture is “better”; they answer different questions. That is the reason the criterion is a user decision rather than a constant.

Practical guidance

Start from the structure of your space. If it contains nominal or ordinal parameters, the choice is between \(\mathrm{MaxPro_{QQ}}\) (projection quality, the usual choice for surrogate modelling) and QQD (uniformity of coverage).

For purely numeric spaces: if you will fit a surrogate and do not know which inputs matter, use uMaxPro, the default, or MaxPro if you specifically want the published non-periodic form. If the requirement is physical spacing or a worst-case distance guarantee, use \(\phi_p\). If the requirement is distributional uniformity or comparability with the uniform-design literature, use \(\mathrm{CD}_2\); if it is balance across a hierarchy of resolutions, use \(\mathrm{SL}_2\).

When requirements conflict or you are unsure, do not guess: mergen.compare() runs the candidate criteria (and optimisers) on your actual space and ranks the results on all quality metrics at once. The how-to guide on comparing designs shows the workflow.

References

Hickernell, F. J. (1998). A generalized discrepancy and quadrature error bound. Mathematics of Computation, 67(221), 299-322.

Joseph, V. R., Gul, E., & Ba, S. (2015). Maximum projection designs for computer experiments. Biometrika, 102(2), 371-380.

Joseph, V. R., Gul, E., & Ba, S. (2020). Designing computer experiments with multiple types of factors: The MaxPro approach. Journal of Quality Technology, 52(4), 343-354.

Morris, M. D., & Mitchell, T. J. (1995). Exploratory designs for computational experiments. Journal of Statistical Planning and Inference, 43(3), 381-402.

Tian, Y., & Xu, H. (2026). A stratified L2-discrepancy with application to space-filling designs. Journal of the Royal Statistical Society Series B: Statistical Methodology, 88(2), 464-490.

Vorechovsky, M., & Masek, J. (2026). Uniform maximum projection designs for computer experiments. Computers & Structures.

Zhang, M., Yang, F., & Zhou, Y.-D. (2021). Uniformity criterion for designs with both qualitative and quantitative factors. Statistics, 55(1), 90-109.
